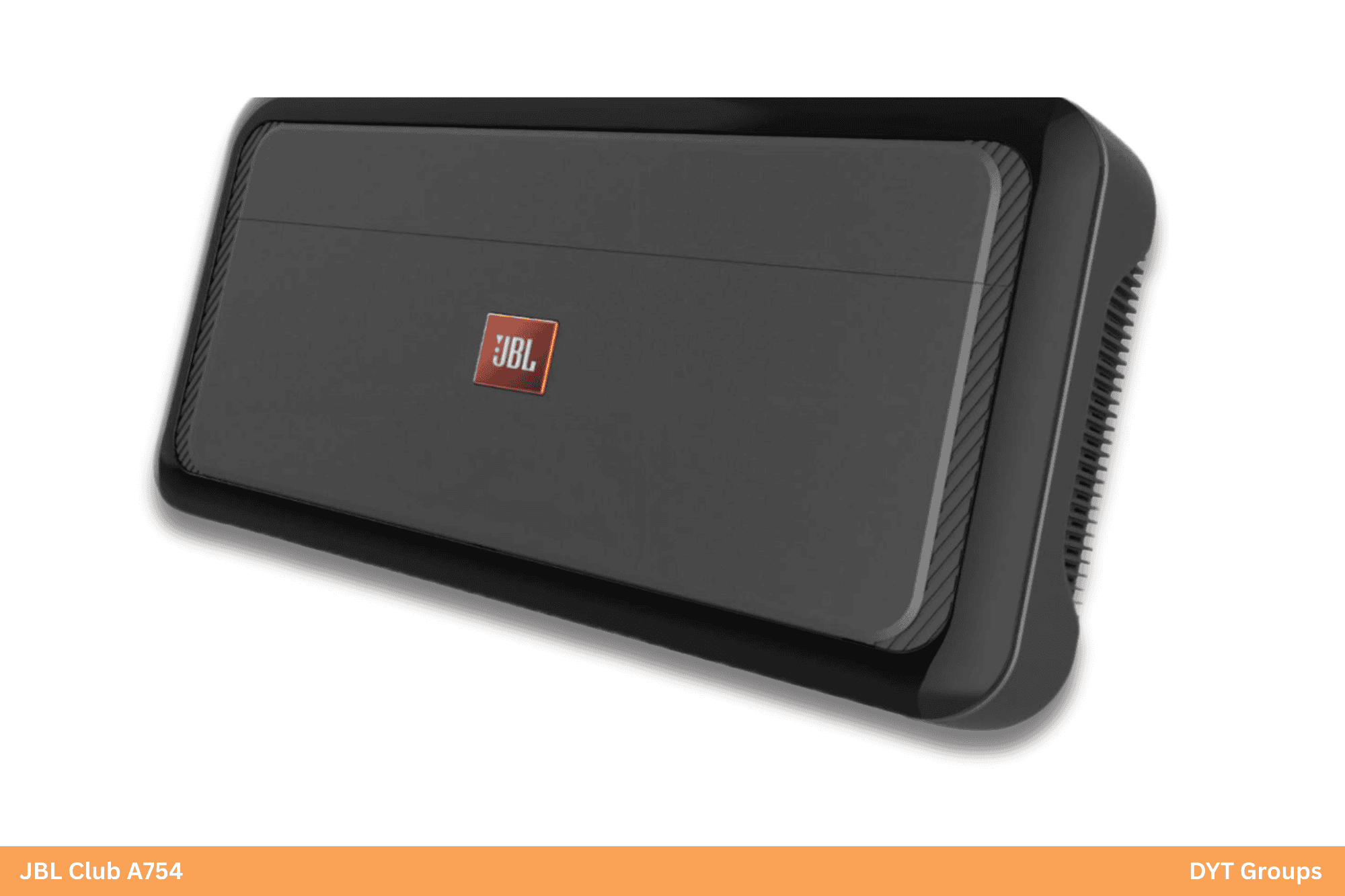

JBL Club A754 4-Channel Car Audio Amplifier (400W RMS)
د.إ572.00
At 4 ohms, 75 watts RMS x 4 (100 watts RMS x 4 at 2 ohms)
Using bridged mode, 200 watts RMS x 2 at 4 ohms (4-ohm steady)
Front and rear channels have variable high- and low-pass filters (32–320 Hz, 12 dB/octave).
Speaker-level inputs and preamps
Preamp outputs
Wiring and hardware are not included with the amplifier; fuse rating: 30A x 2 8-gauge power and ground leads; dimensions: 320 x 51.3 x 180 mm; WxHxD: 12-5/8″ x 2-1/16″ x 7-1/8″.
Adaptability
Because of its small chassis and high-level inputs, the JBL Club A754 can be easily integrated into both custom aftermarket setups and contemporary factory systems. It is a flexible core for any car audio update because of its bridgeable 4-channel design, which allows it to power a high-output subwoofer arrangement or a full speaker array.
What's in the box?
| In the Box | 1 x Club A754 four channel amplifier 4 x Bare wire-to-RCA adapters 4 x 30A ATO fuses (2 installed, 2 spare) 4 x Mounting screws (M4 x 53mm) 2 x JBL stickers 1 x Owner’s manual |
The Maximum Output Power
4 ohm: 75 watts x 4 channel
2 ohm: 100 watts x 4 channel
Shipping & Returns
We offer a 7-day return and exchange policy on selected products from the date of purchase. Additionally, we provide a 12-month after-sales warranty exclusively on Car Screens.
Please Note:
Not all products are eligible for return, refund, exchange, or warranty. Eligibility depends on the product type and condition. Terms and conditions apply.
| Amplifier Specifications | Parameter Value |
|---|---|
| Series | Club Series |
| Amplifier Class | H |
| Number of Channels | 4-Channel |
| Total RMS Power Output | 400 watts |
| Maximum Input Gauge Size | 8 AWG |
| Minimum Impedance Unbridged | 2 ohm |
| Minimum Impedance Bridged | 4 ohms |
| Frequency Response | 10 – 40000 Hz |
| THD at Rated RMS Power | 1% |
| Speaker Level Inputs | Yes |
| Preamp Outputs | 1 pair |
| Built-in Crossover | Low-Pass (LP), High-Pass (HP), Full (AP) |
| High-Pass Crossover Frequency | 32 – 320 Hz |
| Low-Pass Crossover Frequency | 32 – 320 Hz |
| Signal-to-Noise Ratio | 80 dB |
| Remote bass/level controller | No |
| Fuse Rating | 30A x 2 |
| Total Fuse Rating | 60 |
| Strappable | No |
| Sonic Certified Amplifier | Not Tested |
| Amp Bluetooth Connectivity | No |
| Hi-Res Certified | No |
| Low-Level Input Sensitivity | 200 mV – 2 volts |
| High-Level Input Sensitivity | 2 – 20 volts |
| Power Specifications – Full Range Channels | Value |
|---|---|
| RMS Power @ 4 ohms | 75 watts x 4 channel |
| RMS Power @ 2 ohms | 100 watts x 4 channel |
| Bridged RMS Power | 200 watts x 2 channel |
